LMP USB-C Superdock 4K - 15 Port Space Grey
LMP22203
Description
The name says it all with the LMP USB-C SuperDock: A total of 15 ports leave nothing to be desired in terms of data transfer & connectivity, video & audio, and network connection. And the included 130 W power adapter supplies the MacBook Pro/Air with power via USB-C (Power Delivery 3.0/100 W).
Thanks to the USB-C dual connection to the host as well as the latest video chipsets with support for the DP1.4 standard, up to 2 external monitors can be operated independently (Dual Monitor Support) and at up to 4K@60 Hz (Extended Mode). For dual monitor support, you need to connect one external monitor with HDMI 1 port while the 2nd external monitor can be connected to either one of the HDMI 2, DisplayPort or Mini-DisplayPort port. Note: MacBook Air/Pro with M1 can only display a single external monitor due the M1's limitation (see specs at apple.com). Good to know for Mac users: Older 24" and 27" Apple LED Cinema Displays can be connected easily too (but not the Apple Thunderbolt Display!).
A great number of USB peripherals can be connected to the SuperDock thanks to the total of 7 USB ports. With one USB-A and 2 USB-C ports, a maximum of 10 Gbps data transfer can be reached; 2 USB-A ports are classic USB 3.0 ports (5 Gbps) and 2 additional USB 2.0 ports are suitable for simple USB devices such as a USB keyboard or mouse. Thanks to BC1.2 recognition, some of the USB ports can also be used to charge and synchronize iPhone or iPad. USB 3.0 and 2.0 ports can be quickly accessed at the front, while permanently connected devices can be connected at the rear with minimal cable clutter on your desktop.

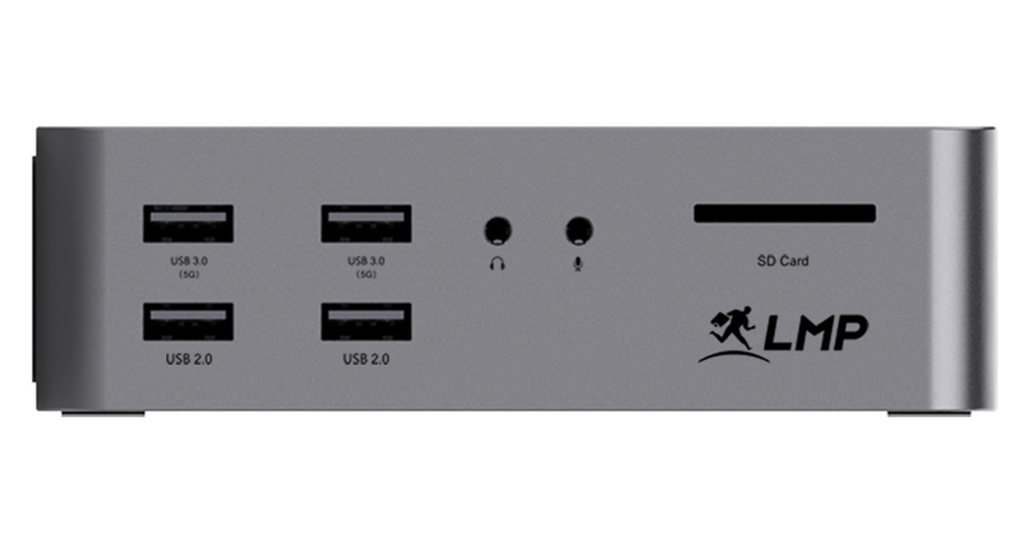

For easy access, a UHS-II SD card reader as well as mircrophone in and audio out ports are located on the front.
A fast and stable network connection can be established via the Gigabit Ethernet port.
An on/off button on the back prevents power consumption while in idle/standby mode. When switched on, the SuperDock delivers the MacBook with power according to Power Delivery 3.0. However, the SuperDock can also be operated with an iMac or Mac mini as the power delivery function will then be automatically switched off.
The LMP USB-C SuperDock also features optical qualities: A high-quality aluminum case, which can be placed horizontally or vertically, fits perfectly into any Mac environment. The aluminum is not only timelessly elegant, but thanks to the integrated cooling fins it's also ideal for dissipating the heat generated inside.
The LMP USB-C SuperDock - super in connectivity and versatility for both portable Mac and desktop Mac.
Technical specifications

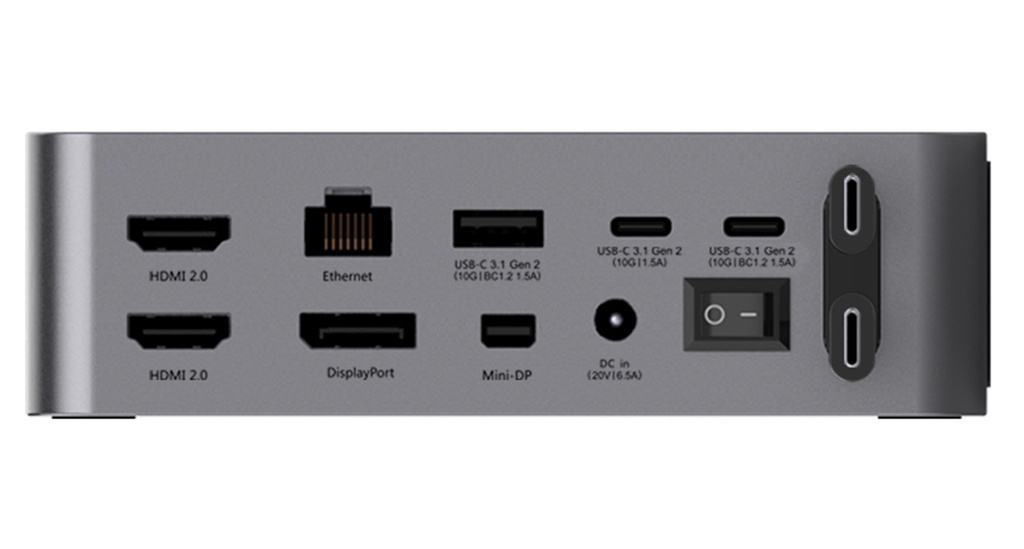

Connection type 2x USB-C 3.1 Gen 2 (up to 10 Gbps, up to 100 W)
Can be used with a single USB-C connection but only with severely limited features! Not suited for 12“ MacBook or laptop with only one free USB-C/Thunderbolt 3 port!
Video ports 1x DisplayPort 1.4 (up to 4K@60 Hz)
1x Mini-DisplayPort 1.4 (up to 4K@60 Hz)
2x HDMI 2.0 (up to 4K@60 Hz)
Apple M1 devices only support one external display (does not apply for M1 Pro/Max/Ultra)
Data ports 1x USB-A 3.1 Gen 2 (up to 10 Gbps, BC 1.2 up to 1.5 A)
1x USB-C 3.1 Gen 2 (up to 10 Gbps, BC 1.2 up to 1.5 A)
1x USB-C 3.1 Gen 2 (up to 10 Gbps, up to 1.5 A)
2x USB-A 2.0 (up to 480 Mbps)
2x USB-A 3.0 (up to 5 Gbps)
Network ports 1x Gigabit Ethernet (10/100/1000 Mbps)
Audio ports 1x Audio In (3.5 mm)
1x Audio Out (3.5 mm)
Card reader 1x SD (UHS-II) card reader
Color Space Gray
Material Aluminum
Power supply External, 130 W, 110 - 240 V
Product dimensions (W x H x D) 13.5 x 4 x 10.5 cm (30 cm dual-link USB-C cables)
Product weight 420 gr
Package dimensions (W x H x D) 19 x 17 x 8.5 cm
Package weight 1362 gr
Package content LMP USB-C SuperDock
3-prong CH cable (1.2 m )
3-prong EU cable (1.2 m)
Power supply (1.2 m cable)
USB-C to USB-C cable
Notes Do not unplug Power Delivery during use. Unmount any attached devices before unplugging power or host connection.
Dual monitor support with 4K@60 Hz with graphics card with DP1.4/HBR 3 / 4K@30 Hz with graphics card with DP1.2/HBR 2
Not compatible with Apple USB SuperDrive. May evolve heat when in use.
Compatible Mac model
Supported Apple devices
iMac (21.5-inch, 2017)
iMac (24-inch, M1, 2021)
iMac (Retina 4K, 21.5-inch, 2017)
iMac (Retina 4K, 21.5-inch, 2019)
iMac (Retina 5K, 27-inch, 2017)
iMac (Retina 5K, 27-inch, 2019)
iMac Pro (2017)
Mac mini (2018)
Mac mini (M1, 2020)
Mac Pro (2019)
Mac Studio (2022)
MacBook Air (M1, 2020)
MacBook Air (M2, 2022)
MacBook Air (Retina, 13-inch, 2018)
MacBook Air (Retina, 13-inch, 2019)
MacBook Air (Retina, 13-inch, 2020)
MacBook Pro (13-inch, 2016, Two Thunderbolt 3 ports)
MacBook Pro (13-inch, 2017, Four Thunderbolt 3 Ports)
MacBook Pro (13-inch, 2017, Two Thunderbolt 3 Ports)
MacBook Pro (13-inch, 2018, Four Thunderbolt 3 Ports)
MacBook Pro (13-inch, 2019, Four Thunderbolt 3 ports)
MacBook Pro (13-inch, 2019, Two Thunderbolt 3 ports)
MacBook Pro (13-inch, 2020, Four Thunderbolt 3 ports)
MacBook Pro (13-inch, 2020, Two Thunderbolt 3 ports)
MacBook Pro (13-inch, Late 2016, Four Thunderbolt 3 Ports)
MacBook Pro (13-inch, M1, 2020)
MacBook Pro (13-inch, M2, 2022)
MacBook Pro (14-inch, 2021)
MacBook Pro (15-inch, 2016)
MacBook Pro (15-inch, 2017)
MacBook Pro (15-inch, 2018)
MacBook Pro (15-inch, 2019)
MacBook Pro (16-inch, 2019)
MacBook Pro (16-inch, 2021)
