Product Collection
Intel® NUC Kit with 11th Generation Intel® Core™ Processors
Code Name
Status
Launched
Launch Date
Q1'21
Expected Discontinuance
1H'24
Supported Operating Systems
Windows 11 Home*, Windows 11 Pro*, Windows 10 Home, 64-bit*, Windows 10 IoT Enterprise*, Windows 10 Pro, 64-bit*, Red Hat Linux*, Ubuntu 20.04 LTS*
Board Number
NUC11TNBi5
Board Form Factor
UCFF (4" x 4")
Socket
Soldered-down BGA
Internal Drive Form Factor
M.2 and 2.5" Drive
# of Internal Drives Supported
3
Lithography
10 nm SuperFin
TDP
28 W
DC Input Voltage Supported
12-20 VDC
Recommended Customer Price
$427.52 - $429.98
Processor Included
Total Cores
4
Total Threads
8
Max Turbo Frequency
4.20 GHz
Supplemental Information
Embedded Options Available
No
Memory & Storage
Max Memory Size (dependent on memory type)
64 GB
Memory Types
DDR4-3200 1.2V SO-DIMMs
Max # of Memory Channels
2
Max # of DIMMs
2
ECC Memory Supported ‡
No
Processor Graphics
Integrated Graphics ‡
Yes
Graphics Output
Dual HDMI 2.0b w/HDMI CEC, Dual DP 1.4a via Type C
# of Displays Supported ‡
4
Expansion Options
PCI Express Revision
Gen 4 (m.2 22x80 slot); Gen 3 (otherwise)
PCI Express Configurations ‡
PCIe x4 Gen 4: M.2 22x80 (key M)
PCIe x1 Gen 3: M.2 22x42 (key B)
PCIe x1: M.2 22x30 (key E)
PCIe x1 Gen 3: M.2 22x42 (key B)
PCIe x1: M.2 22x30 (key E)
M.2 Card Slot (wireless)
22x30 (E)
M.2 Card Slot (storage)
22x80 NVMe (M); 22x42 SATA (B)
I/O Specifications
# of USB Ports
4

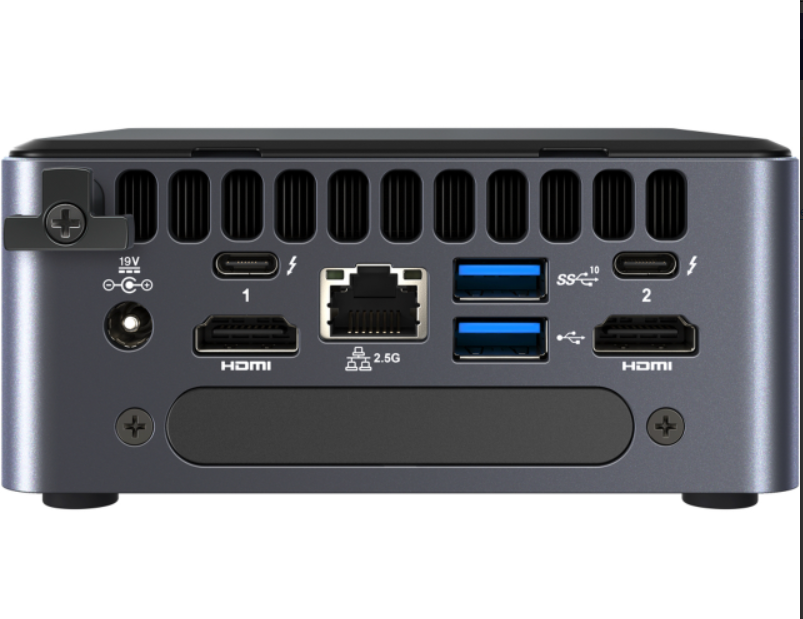

USB Configuration

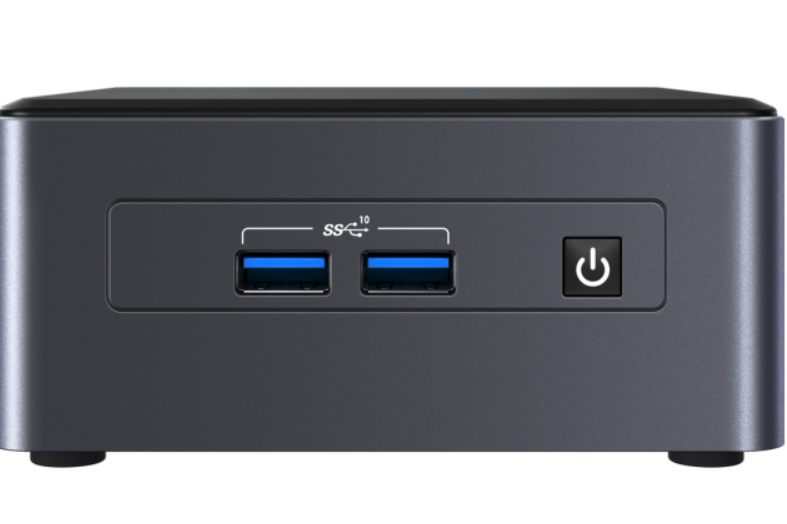

Front: 2x USB 3.2
Rear: 2x USB 4 (type C), 1x USB 3.2, 1x USB 2.0
Internal: 1x USB 3.2 on m.2 22x42 (pins), 2x USB 2.0 (headers)
Rear: 2x USB 4 (type C), 1x USB 3.2, 1x USB 2.0
Internal: 1x USB 3.2 on m.2 22x42 (pins), 2x USB 2.0 (headers)
Total # of SATA Ports
1
Serial Port via Internal Header
Yes
Integrated LAN
Intel® Ethernet Controller i225-LM
Integrated Wireless‡
Intel® Wi-Fi 6 AX201
Integrated Bluetooth
Yes
Additional Headers
Front_panel (PWR, RST, 5V, 5Vsby, 3.3Vsby); Internal 2x2 power connector
# of Thunderbolt™ Ports
1x Thunderbolt™ 4, 1x Thunderbolt™ 3
Package Specifications
Chassis Dimensions
117 x 112 x 54 [mm] (LxWxH)
Advanced Technologies
Intel® Optane™ Memory Supported ‡
No
Intel® Virtualization Technology for Directed I/O (VT-d) ‡
Yes
Intel® ME Firmware Version
15
Intel® Virtualization Technology (VT-x) ‡
Yes
Intel® Platform Trust Technology (Intel® PTT)
Yes
Security & Reliability
Intel® AES New Instructions
Yes
