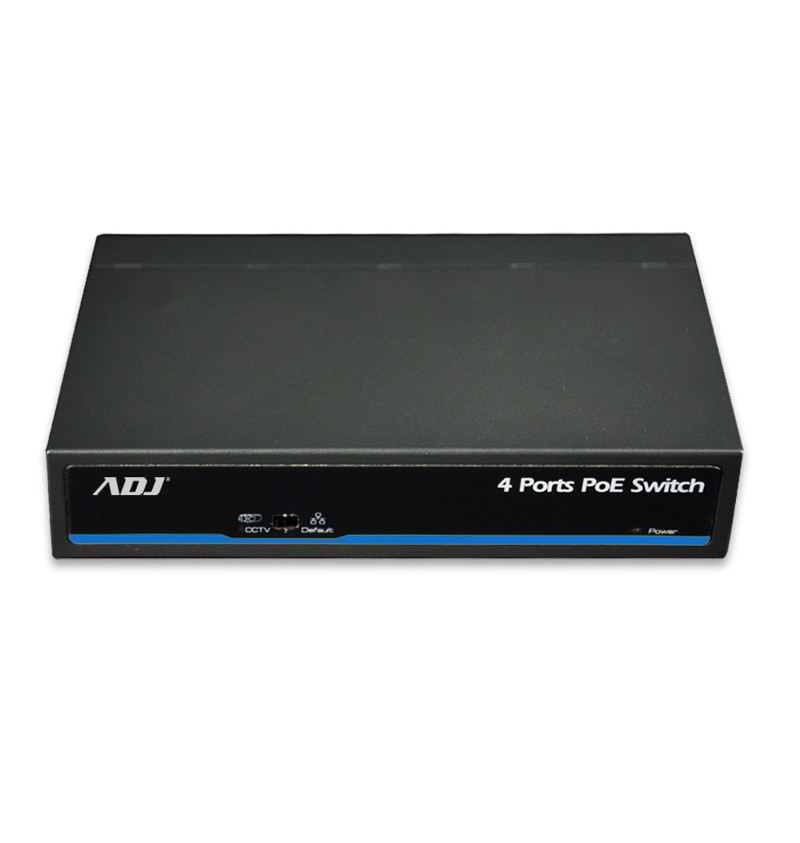

Switch 4 Ports PoE + 1 Uplink Port ADJ is a security surveillance Ethernet Switch which aims at Ethernet high definition surveillance and Ethernet project security system

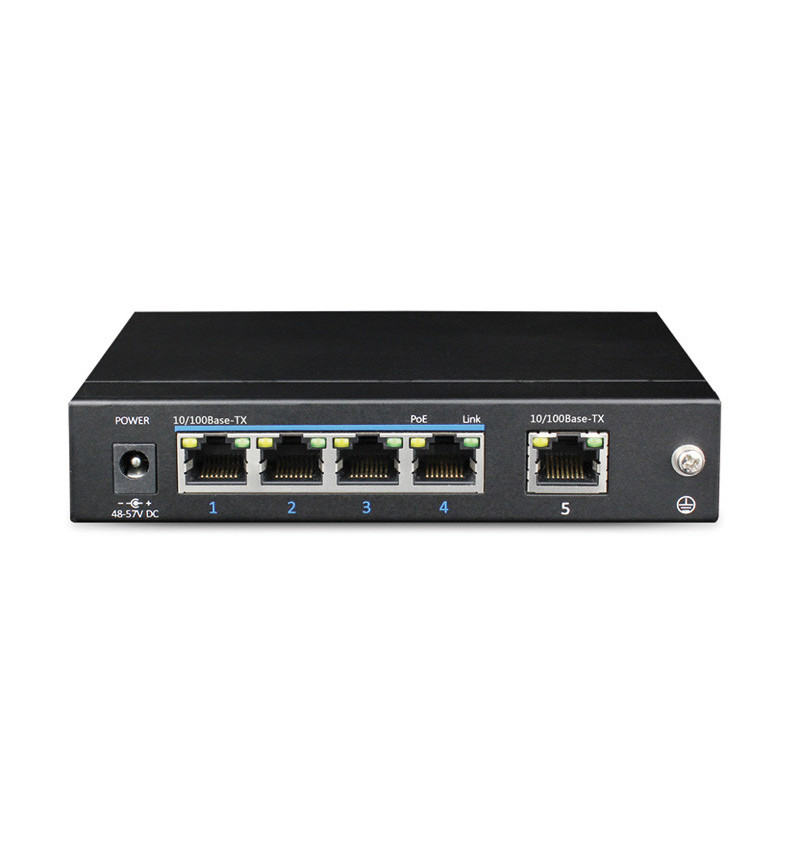

| Downlink Ports | 4x10/100Base-TX (PoE) |
| Uplink Ports | 1x 10/100Base-TX |
| Network Standard | IEEE 802.3/802.3u/IEEE802.3x |
| Switch Capacity | 1 Gbps |
| Packet Forwarding Rate | 0.74Mpps |
| Exchange Type | Storage&Fowarding |
| Buffer | 768k |
| MAC Address List | 2K |
| PoE Standard | 802.3af/at(PSE) |
| PoE Mode | End-span |
| PoE Power Supply | 1/2(+) , 3/6(-) |
| CCTV Mode | 1. Downlink ports only communicate with uplink ports 2. Extend transmission distance to 250m (Downlink Ports) 3. Rate: 10Mbps (Downlink Ports) |
| Surge Immunity | 6KV : IEC61000-4-5 |
| ESD Protection | Contact discharge 6K, Air discharge 8KV, Per: IEC61000-4-2 |
| Voltage Input | DC 48V-57V |
| Power Consumption | 5W |
| Operation Temperature | -10°C~+55°C |
| Storage Temperature | -40°C~+85°C |
| Operation Humidity | 5%-95% (Non-condensing) |
| Dimensions (LxWxH) | 135 x 85.6 x 27 mm |
| Packaging dimensions (LxWxH) | 213 x 158 x 64 mm |
| Material | Metal |
| Weight | 315 g |
